14  Combining Datasets

Data Reshaping ended with a condition: two tables can be joined row by row only once each row means the same thing in both. This chapter does the joining. Real analyses rarely start from a single table. The information you need is split across files — one per region or per year, one holding measurements and another holding descriptions — and the first job is often to put it back together.

There are two basic ways to combine tables. When they hold the same kind of rows, you stack them. When they hold different information about the same things, you match their rows on a shared key. Matching is where the surprises live: rows that find no partner, keys that appear twice, names spelled differently in two sources. So, as in the last two chapters, the habit to build is checking the result before you trust it.

By the end of this chapter you should be able to:

Complete the practice activity after the worked examples.

14.1 Set Up Your Chapter Files

Download the Combining Datasets practice kit. Extract stat303-combining-datasets inside the chapters folder of your stat303-1 course folder, open stat303-1 in VS Code, and select the course environment. The terminal opens in stat303-1, so move it into the kit with cd chapters and then cd stat303-combining-datasets before you render the activity.

stat303-1/
├── .venv/
├── assignments/
└── chapters/
    └── stat303-combining-datasets/
        ├── combining_datasets_examples.ipynb
        ├── activity14.ipynb
        ├── README.md
        └── data/
            ├── gdp_lifeExpec_Africa.csv
            ├── gdp_lifeExpec_Americas.csv
            ├── gdp_lifeExpec_Asia.csv
            ├── gdp_lifeExpec_Europe.csv
            ├── gdp_lifeExpec_Oceania.csv
            └── country-capital-lat-long-population.csv

Run combining_datasets_examples.ipynb for the lesson and complete activity14.ipynb for your own activity report, with stat303-combining-datasets as the notebook working folder. Every file is read with a relative path such as "data/gdp_lifeExpec_Asia.csv", so the notebooks find their data only when that folder is the working folder.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

Environment check: This chapter uses NumPy, pandas, matplotlib, and seaborn, all of which are already in the course environment. If an import fails, check the selected notebook kernel first: it must be the course environment, stat303-1/.venv, as in Project Environments, Packages, and File Paths.

14.2 Why combine datasets

Why combine?

  • Information is distributed. Customer details live in one table and purchases in another; product descriptions are separate from sales; a survey’s answers are split across several files.
  • Data comes from several sources. Internal records meet external data — a company’s sales with public economic indicators, or a course’s grades with its attendance log.
  • Data is split for storage. One file per month, per region, or per year is common, and an analysis across all of them needs them in one table.
  • An analysis needs more columns. Adding a population, a region, or a category from a second table makes new comparisons possible.

Two operations cover nearly every case:

Operation Tool The tables share Result
Stack pd.concat() The same columns, different rows More rows
Match df.merge() A key column, different information More columns, rows paired by key

14.3 Stack rows: pd.concat()

The Gapminder data from the last two chapters arrives here in pieces: one file per continent, each with the same five columns. Combining them is stacking, and pd.concat(), which you met adding a row in Data Reshaping, does it for a whole list of tables.

None of the files has a continent column — the continent is in the file name. Adding it as each file is read keeps that information once the pieces are stacked. A for loop reads each file, adds the column, and collects the pieces in a list:

pieces = []
for continent in ["Africa", "Americas", "Asia", "Europe", "Oceania"]:
    piece = pd.read_csv(f"data/gdp_lifeExpec_{continent}.csv")
    piece["continent"] = continent
    print(continent, piece.shape)
    pieces.append(piece)

gapminder = pd.concat(pieces, ignore_index=True)
print("stacked:", gapminder.shape)
gapminder.head()
Africa (624, 6)
Americas (300, 6)
Asia (396, 6)
Europe (360, 6)
Oceania (24, 6)
stacked: (1704, 6)
country year lifeExp pop gdpPercap continent
0 Algeria 1952 43.077 9279525 2449.008185 Africa
1 Algeria 1957 45.685 10270856 3013.976023 Africa
2 Algeria 1962 48.303 11000948 2550.816880 Africa
3 Algeria 1967 51.407 12760499 3246.991771 Africa
4 Algeria 1972 54.518 14760787 4182.663766 Africa

624 + 300 + 396 + 360 + 24 = 1,704 rows: the stacked table has exactly the rows of its pieces, which is the check to make after any stack. ignore_index=True numbers the stacked rows 0 to 1,703; without it, each piece keeps its own numbering and row labels repeat.

concat() lines up columns by name. A column that some pieces lack is filled with NaN in the rows from those pieces. Suppose the Africa file had spelled one column differently:

renamed = pieces[0].rename(columns={"lifeExp": "life_expectancy"})   # the Africa piece
mixed = pd.concat([renamed] + pieces[1:], ignore_index=True)

print(mixed.columns.tolist())
mixed[["lifeExp", "life_expectancy"]].isna().sum()
['country', 'year', 'life_expectancy', 'pop', 'gdpPercap', 'continent', 'lifeExp']
lifeExp             624
life_expectancy    1080
dtype: int64

No error, the right number of rows, and life expectancy split across two half-empty columns: lifeExp is missing for Africa’s 624 rows and life_expectancy for the other 1,080. Any analysis of lifeExp would silently leave out Africa. After stacking files you did not make yourself, check columns and count missing values per column.

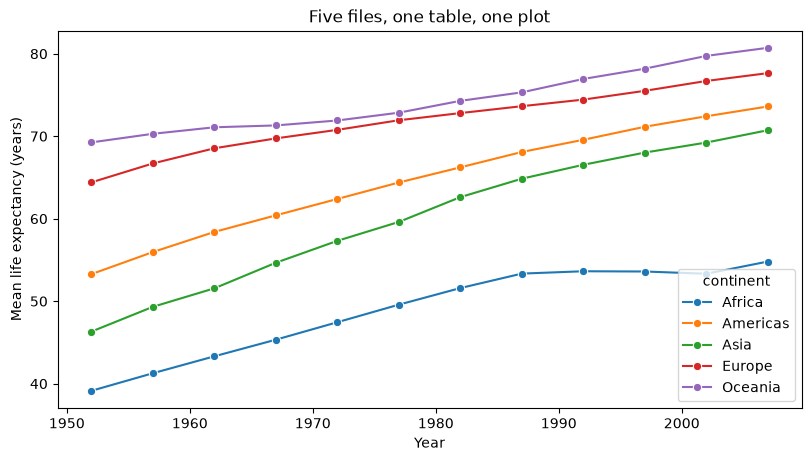

The correctly stacked table goes straight into the tools of the last chapters:

fig, ax = plt.subplots(figsize=(8, 4.5), layout="constrained")
sns.lineplot(data=gapminder, x="year", y="lifeExp", hue="continent",
             errorbar=None, marker="o", ax=ax)
ax.set(xlabel="Year", ylabel="Mean life expectancy (years)",
       title="Five files, one table, one plot")
plt.show()

lineplot averages the countries of each continent in each year, as groupby() did in Data Grouping and Aggregation; errorbar=None leaves out the confidence bands. Without the continent column added during the loop, this plot would be impossible.

14.4 Match rows on a key: merge()

Stacking needs tables with the same columns. Matching needs something different: a key, a column whose values identify the same thing in both tables. Two small tables about members of the Fellowship from The Lord of the Rings show how it works. One lists skills, the other ages, and both identify members by FellowshipID:

skills = pd.DataFrame({
    "FellowshipID": [1001, 1002, 1003, 1004],
    "FirstName": ["Frodo", "Samwise", "Gandalf", "Pippin"],
    "Skills": ["Hiding", "Gardening", "Spells", "Fireworks"],
})
ages = pd.DataFrame({
    "FellowshipID": [1001, 1002, 1006, 1007, 1008],
    "FirstName": ["Frodo", "Samwise", "Legolas", "Elrond", "Boromir"],
    "Age": [50, 39, 2931, 6520, 51],
})
print(skills, "\n")
print(ages)
   FellowshipID FirstName     Skills
0          1001     Frodo     Hiding
1          1002   Samwise  Gardening
2          1003   Gandalf     Spells
3          1004    Pippin  Fireworks

   FellowshipID FirstName   Age
0          1001     Frodo    50
1          1002   Samwise    39
2          1006   Legolas  2931
3          1007    Elrond  6520
4          1008   Boromir    51

Frodo and Samwise appear in both tables; Gandalf and Pippin only in skills; Legolas, Elrond, and Boromir only in ages. merge() pairs rows whose key values are equal:

skills.merge(ages, on="FellowshipID")
FellowshipID FirstName_x Skills FirstName_y Age
0 1001 Frodo Hiding Frodo 50
1 1002 Samwise Gardening Samwise 39

Two rows: by default merge() keeps only keys found in both tables. Notice FirstName_x and FirstName_y. Both tables have a FirstName column that is not part of the key, so pandas keeps both and adds suffixes: _x from the left table, _y from the right. Here the two columns agree, because a name belongs to its ID.

14.4.1 Several key columns

When two tables share more than one identifying column, list them all in on=. Rows then pair only when every key matches, and the shared columns appear once:

skills.merge(ages, on=["FellowshipID", "FirstName"])
FellowshipID FirstName Skills Age
0 1001 Frodo Hiding 50
1 1002 Samwise Gardening 39

Several key columns are common: a sale is identified by store and date, a grade by student and course, a Gapminder row by country and year.

14.4.2 Keys with different names

Two sources rarely name their key the same way: FellowshipID in one file, ID in another. left_on= and right_on= name the key in each table:

ages_renamed = ages.rename(columns={"FellowshipID": "ID"})
skills.merge(ages_renamed, left_on="FellowshipID", right_on="ID")
FellowshipID FirstName_x Skills ID FirstName_y Age
0 1001 Frodo Hiding 1001 Frodo 50
1 1002 Samwise Gardening 1002 Samwise 39

Both key columns survive, holding identical values; drop one afterwards with .drop(columns="ID").

14.4.3 Which rows survive: how=

The rows that find no partner are where most mistakes happen. how= decides what happens to them:

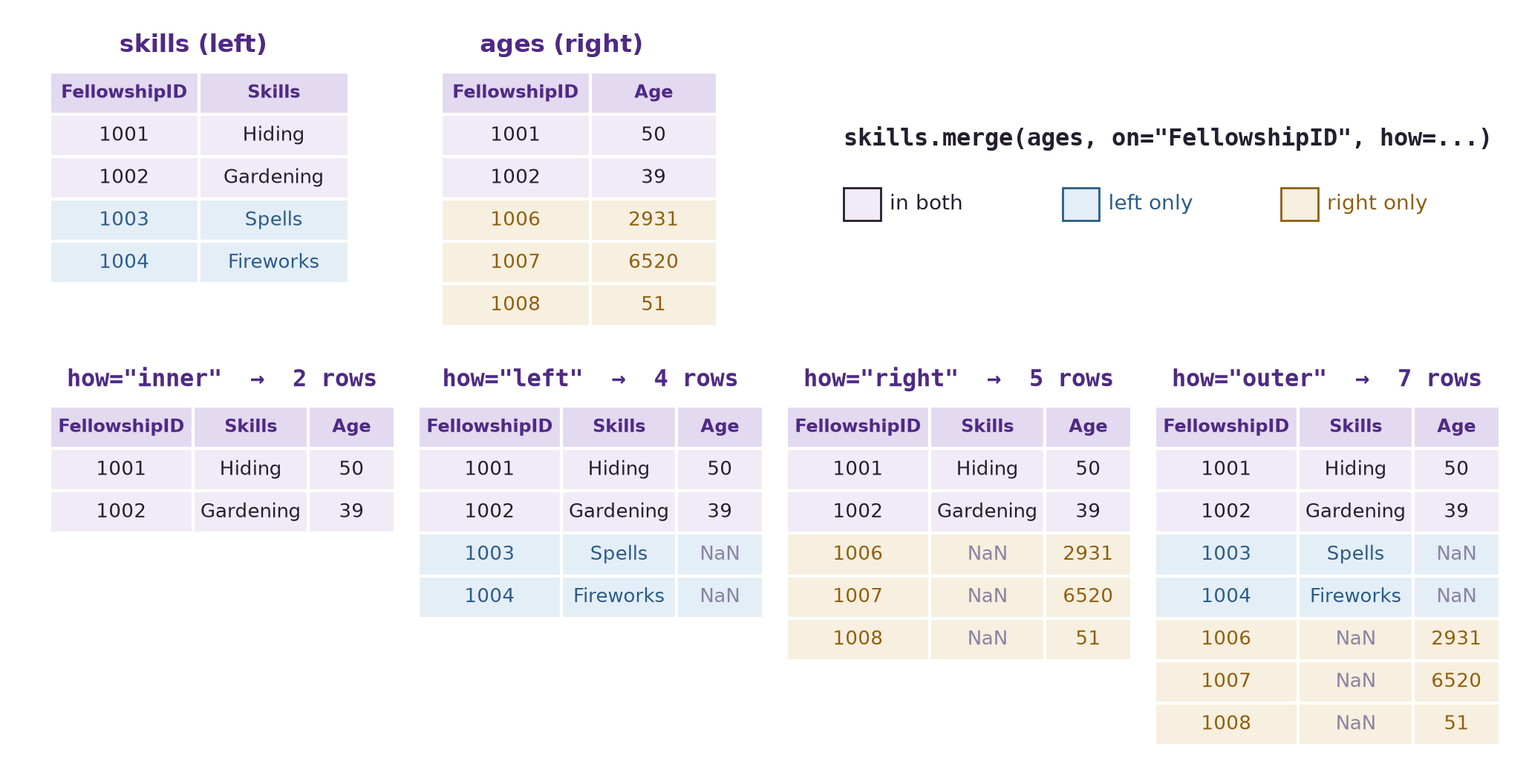

The four join types on the fellowship tables. Purple rows have a key in both tables, blue rows only in the left table, gold rows only in the right; NaN marks values with no partner.
how= Keeps NaN appears in Rows here
"inner" (default) Keys in both tables Nowhere 2
"left" Every left key Right-hand columns of unmatched rows 4
"right" Every right key Left-hand columns of unmatched rows 5
"outer" Every key in either table Both sides 7

The counts are worth confirming in code, and indicator=True adds a _merge column that says where each row came from:

fellowship = skills.merge(ages, on=["FellowshipID", "FirstName"], how="outer", indicator=True)
fellowship
FellowshipID FirstName Skills Age _merge
0 1001 Frodo Hiding 50.0 both
1 1002 Samwise Gardening 39.0 both
2 1003 Gandalf Spells NaN left_only
3 1004 Pippin Fireworks NaN left_only
4 1006 Legolas NaN 2931.0 right_only
5 1007 Elrond NaN 6520.0 right_only
6 1008 Boromir NaN 51.0 right_only
fellowship["_merge"].value_counts()
_merge
right_only    3
left_only     2
both          2
Name: count, dtype: int64

both, left_only, and right_only are the three colours of the diagram. Counting the _merge column is the quickest way to see how well two tables matched: a merge you expected to pair almost everything, but that shows many left_only rows, is usually a sign that the keys are written differently in the two tables.

Which how= to use.

how= Use when Examples
"inner" The analysis needs both pieces of information for every row Relating vaccination rates to infection rates: only countries with both can contribute. An A/B test: only users with both a group assignment and an outcome count.
"left" The left table is your primary data and every row must stay All customers with their purchases: a customer with no purchases spent $0. All employees with their reviews: an employee not yet reviewed is “pending”, not missing.
"outer" Nothing may be lost from either table Mid- and end-of-semester surveys: keep every student who answered either one. Auditing expected against actual records: find what is missing on each side.
"right" The right table is primary The same as a left join with the tables swapped; writing it as a left join, primary table first, usually reads more clearly.

14.5 Check a merge

A merge can return a table of the right shape that is quietly wrong. Three checks catch most problems: the row count, the uniqueness of the keys, and the missing values that unmatched keys leave behind.

14.5.1 The row count, and keys that repeat

Suppose life expectancy and GDP arrived in two separate tables, both keyed by country and year:

life = gapminder[["country", "year", "lifeExp"]]
money = gapminder[["country", "year", "gdpPercap"]]

both_keys = life.merge(money, on=["country", "year"])
print(life.shape, money.shape, "->", both_keys.shape)
(1704, 3) (1704, 3) -> (1704, 4)

1,704 rows in, 1,704 rows out: every country-year found exactly one partner. Now the same merge with an incomplete key, country alone:

country_only = life.merge(money, on="country")
print(country_only.shape)
country_only.head(3)
(20448, 5)
country year_x lifeExp year_y gdpPercap
0 Algeria 1952 43.077 1952 2449.008185
1 Algeria 1952 43.077 1957 3013.976023
2 Algeria 1952 43.077 1962 2550.816880

20,448 rows: twelve times too many, and no error. Each country has 12 rows in each table, so every row in life pairs with all 12 rows of the same country in money, and 12 × 12 = 144 rows per country × 142 countries = 20,448. The year_x and year_y columns are the giveaway: a 1952 life expectancy sits beside a 2007 GDP. A key must identify one row; country alone does not.

validate= tells merge() what you expect and raises an error when the keys disagree. "one_to_one" means each key appears at most once in each table; "many_to_one" means the right table’s keys are unique, as for a lookup table. A try/except block shows the error and lets the notebook keep running:

try:
    life.merge(money, on="country", validate="one_to_one")
except pd.errors.MergeError as error:
    print("MergeError:", str(error).splitlines()[0])
MergeError: Merge keys are not unique in either left or right dataset; not a one-to-one merge.

The same check passes for the correct key, on=["country", "year"]. Add validate= whenever you know how the tables should relate; it turns a silent row explosion into an error you cannot miss. Before merging, df.duplicated(subset=key).sum(), from Data Cleaning, counts repeated keys in each table.

14.5.2 Many rows to one: a lookup table

The most common merge in practice attaches a small lookup table to many rows: a region for each state, a price for each product code, a group summary for each member. Each row of the large table matches exactly one row of the lookup table, while each lookup row matches many — the "many_to_one" relationship.

A summary from Data Grouping and Aggregation makes a lookup table: mean life expectancy for each continent and year, 60 rows. rename() gives its value column a distinct name before the merge:

continent_mean = (gapminder.groupby(["continent", "year"])["lifeExp"].mean()
                  .reset_index()
                  .rename(columns={"lifeExp": "continent_lifeExp"}))

with_mean = gapminder.merge(continent_mean, on=["continent", "year"],
                            how="left", validate="many_to_one")
print(continent_mean.shape, "->", with_mean.shape)
(60, 3) -> (1704, 7)

validate="many_to_one" passes because each continent-year appears once in the lookup table, and the row count is still 1,704: every country row gained one value and none was duplicated. That is the check for any lookup merge — the row count must not change.

Each country can now be compared with its continent in the same year:

with_mean["gap"] = with_mean["lifeExp"] - with_mean["continent_lifeExp"]
(with_mean.sort_values("gap")
    [["country", "continent", "year", "lifeExp", "continent_lifeExp", "gap"]]
    .head(3).round(1))
country continent year lifeExp continent_lifeExp gap
464 Rwanda Africa 1992 23.6 53.6 -30.0
965 Cambodia Asia 1977 31.2 59.6 -28.4
934 Afghanistan Asia 2002 42.1 69.2 -27.1

The largest gaps below a continent’s mean are Rwanda in 1992, 30 years below Africa’s mean in the years of its civil war and genocide; Cambodia in 1977, under the Khmer Rouge; and Afghanistan in 2002. The continent_lifeExp column is exactly what groupby(["continent", "year"])["lifeExp"].transform("mean") gave in Data Grouping and Aggregation. transform() is the shortcut when the summary comes from the same table; merging a summary back is the general pattern, and it works when the lookup table comes from somewhere else.

14.5.3 Missing values from unmatched keys

A left or outer merge fills the columns of unmatched rows with NaN. Unlike the gaps in Data Cleaning, these mean something specific: this key was not found in the other table. The right handling depends on what absence means.

left_join = skills.merge(ages, on=["FellowshipID", "FirstName"], how="left")
left_join
FellowshipID FirstName Skills Age
0 1001 Frodo Hiding 50.0
1 1002 Samwise Gardening 39.0
2 1003 Gandalf Spells NaN
3 1004 Pippin Fireworks NaN

Gandalf’s and Pippin’s ages are NaN because the ages table has no row for them, not because their age is zero. Three choices, from Data Cleaning:

  • Keep the NaN when absence is informative and should be reported, as here: the ages table is incomplete.
  • Fill when absence has a known meaning: a customer with no purchase rows spent $0, so fillna(0) is correct for spend, though it would be wrong for age.
  • Drop with dropna(subset=[...]) when an analysis needs both values — which is the same as having used an inner join.

Whichever you choose, count how many rows were unmatched before deciding.

Notejoin() and concat(axis=1)

You will also meet df.join(other), which matches rows on the index rather than on a column, and pd.concat([a, b], axis=1), which places tables side by side by index. Both do work merge() can do once the key is an ordinary column, which is how this book writes it: merge() names the key, so the match is visible in the code.

14.6 Summary Cheat Sheet

Stacking.

Goal Code
Stack tables with the same columns pd.concat([a, b, c], ignore_index=True)
Record each piece’s source piece["source"] = name before stacking
Check the result rows equal the sum of the pieces; inspect columns

Matching.

Goal Code
Match on one key left.merge(right, on="key")
Match on several keys left.merge(right, on=["k1", "k2"])
Keys with different names left.merge(right, left_on="id", right_on="ID")
Keep unmatched rows how="left", "right", or "outer" (default "inner")
See where each row came from indicator=True, then df["_merge"].value_counts()
Enforce how keys relate validate="one_to_one" or "many_to_one"
Count repeated keys first df.duplicated(subset=["key"]).sum()
Attach a lookup table big.merge(lookup, on="key", how="left", validate="many_to_one"); rows unchanged

The rule to remember: after every merge, compare the row count with what you expected and count where the rows came from.

14.7 Practice Activity: Stack, Match, and Check

Goal: Combine real files by stacking and by matching, and use the checks to find what did not combine cleanly.

File: activity14.ipynb from the practice kit.

Submit: activity14.html through the final upload question in the Combining Datasets Canvas quiz.

This section contains the complete activity instructions. The starter loads the data and supplies spaces to record your work. Open activity14.ipynb from the folder prepared in Set Up Your Chapter Files, using the same project environment. The worked examples above are preparation, not additional submission requirements.

The starter reads the five continent files into a dictionary, pieces, keyed by continent name, and loads capitals, a table of countries with their capital cities.

A. Stack Five Files

  • Replace Your Name in the opening Raw cell’s author field. Run the setup cell; it must report five continent tables and capitals with shape (234, 6).
  • Add a continent column to each piece and stack them with pd.concat(..., ignore_index=True) into one table, gapminder.
  • Show that the stacked row count equals the sum of the pieces, and that gapminder has no missing values.

B. Match Countries to Capitals

  • Make gapminder_2007, the rows for 2007, and merge it with capitals using how="left", left_on="country", right_on="Country", and indicator=True.
  • Report how many countries matched and how many did not, and list the unmatched countries.
  • Choose two unmatched countries, find how each is written in capitals, and explain why the merge missed them.

C. Inner Against Outer

  • Repeat the merge with how="inner" and with how="outer", and report the row count of each.
  • Explain each count in terms of the rows in gapminder_2007, the rows in capitals, and the number that matched.

D. Check the Keys

  • Count the repeated values in capitals["Country"] with duplicated(), and show the repeated rows.
  • Show that the Part B merge raises a MergeError with validate="many_to_one" (catch it with try/except), then remove the repeat with drop_duplicates(subset="Country") and show that the validated merge succeeds.

Render and Submit

Restart the kernel, run all cells in order, resolve unexpected errors, and save. Include your outputs and explanations for A–D, and a short Markdown completion note. From stat303-combining-datasets in the terminal, run:

quarto render activity14.ipynb --to html

Follow the Quarto refresher: inspect the HTML and a copy opened outside the project folder, and confirm that every output appears and your name is on the report. Upload only activity14.html to the Combining Datasets Canvas quiz; keep your notebook locally.

HTML grading (16 points): the stacked table with its row and missing-value checks (4); the left merge, the matched and unmatched counts, and the two explained mismatches (4); inner and outer row counts with their explanation (4); the repeated key, the validated merge failing and then succeeding (3); name, readable report, and completion note (1).

14.8 Extended Practice

These longer exercises are additional practice, not requirements for the Canvas quiz. Work in a separate notebook beside your activity and load the data the way the chapter does. Include your code, outputs, and explanations.

14.8.1 Repair the Names

Build a small table that maps each unmatched Gapminder name to its spelling in capitals (for example, "United States" to "United States of America"), use it to add a corrected key column to gapminder_2007, and repeat the left merge. How many countries still fail to match, and why?

14.8.2 Capitals and Life Expectancy

After the repaired merge, plot life expectancy in 2007 against the latitude of each country’s capital, coloured by continent. Is there a pattern? What would you check before claiming one?

14.8.3 Stack, Then Summarize

Stack the five continent files without adding a continent column, then try to compute mean life expectancy by continent. What information was lost, and how else could you recover it from the files?

14.8.4 Merge Two Summaries

Compute mean life expectancy by continent and year in one table and total population by continent and year in another, using groupby(). Merge them on both keys with validate="one_to_one", and plot one against the other.

14.9 Before You Move On

The habit to carry forward is checking every combination. A stack should have exactly the rows of its pieces. A merge should have the rows you predicted from its keys and its how=, and indicator=True and validate= turn the ways it can go wrong — unmatched keys, keys that repeat — into numbers and errors you can see. None of these mistakes raises an error on its own; a merged table looks complete whether or not it is right.

The other habit is asking what an absence means. A NaN from an unmatched key says the other table had no row, which is different from a value of zero and different from a measurement that was never taken.

For any combination you make, you should be able to answer five questions:

  1. Are you stacking tables with the same columns, or matching tables on a key?
  2. What is the key, and does it identify exactly one row in each table?
  3. Which how= did you choose, and how many rows did you expect?
  4. How many rows matched, and why did the others not?
  5. What do the missing values from unmatched keys mean, and what did you do with them?

This chapter completes the path the book has followed: reading data, cleaning it, preparing it, summarizing it by group, reshaping it, and now combining it. The assignments in the appendices bring these steps together on larger datasets.

References: pandas: merge, join, concatenate and compare, pd.concat, DataFrame.merge, DataFrame.join, and pandas.errors.MergeError.
